BSO Hot Air Circulating Oven

Product Introduction:

ThisDrying Machine is a multifunctional drying device, which mainly circulates inside the box through the forced hot air heated by the electric heating tube or the steam heat exchanger to enhance the heat transfer and achieve the effect of drying the material.
This product is equipped with low noise, high temperature proof axial flow blower and automatic temperature control system. The entire circulating system is fully sealed and it increased the thermal efficiency. The technology of the hot air circulating oven is advanced level in world. It is an energy saving product and it has improved the economic benefits for a lot of manufacturers.


Product Desciption:
BSO drying machine applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditionaloven to 35-45% of the present one. Our products can be customized according to the needs.


Working Method:
The basic principle of the BSO series hot air circulation drying oven is to use steam or electricity as heat energy, and heat is generated by a steam radiator or electric heating element. The fan performs convective heat transfer, heat is transferred to the material, and fresh air is continuously added to the oven to discharge humidity Gas is blown from the oven. When drying, maintain proper relative temperature and humidity. The most important feature is that most of the hot air circulates in the drying room, thereby enhancing heat and mass transfer and saving energy.


Model

BSO-O

BSO-I

BSO-II

BSO-III

BSO-IV

Dry amount each (kg/batch)

~60

~120

~240

~360

~ 500

Temperature (℃)

20 ~160 (adjustable)

Axial Fan (KW)

0.45  * 1

piece

0.45 * 1 piece

0.45* 2 pieces

0.45* 3 pieces

0.45  * 4 pieces

Heat dispelling area (m³)

15

24

48

80

100

Steam consumption (kg/hr)

15

20

40

60

80

Electric-heating power (KW)

9

15

30

45

60

Down temp (℃)

±2

Tray cart quantity (set)

1

2

4

6

8

Tray (piece)

24

48

96

144

192

Tray size

640*460*45mm*δ0.5mm (punching:3mm)

Overall size (L*W*H)(mm)

1400*1200*2000

2300*1200*2000

2300*2200*2000

3200*2200*2000

4280*2200*2000

Weight(kg)

820

1580

1800

2100

2800

Material

Stainless steel 304

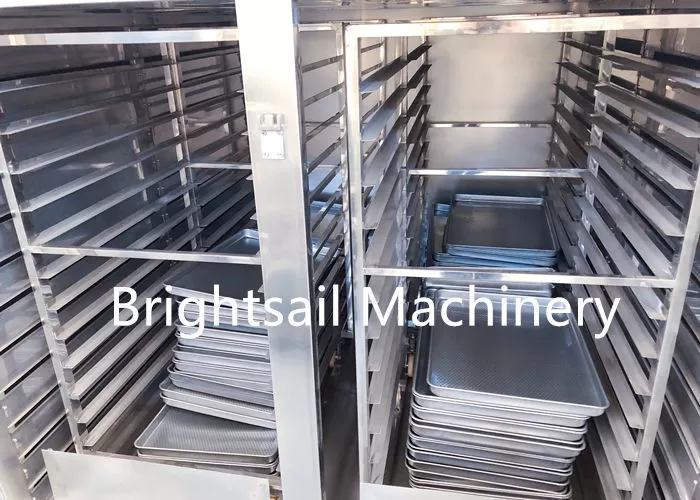

1. The entire machine and baking tray made of stainless steel.
2. Most of hot air inside the loop, high thermal efficiency, energy conservation.
3. The use of forced ventilation in the box high and adjustable air board, dry materials evenly.
4. Source may be steam or electricity.
5. With a temperature-controlled device, easy installation and maintenance. Wide range of applications can be drying various materials and is a versatile drying equipment.
