New product- high speed pin mill

Source: Date: 2016.08.23 Clicks:

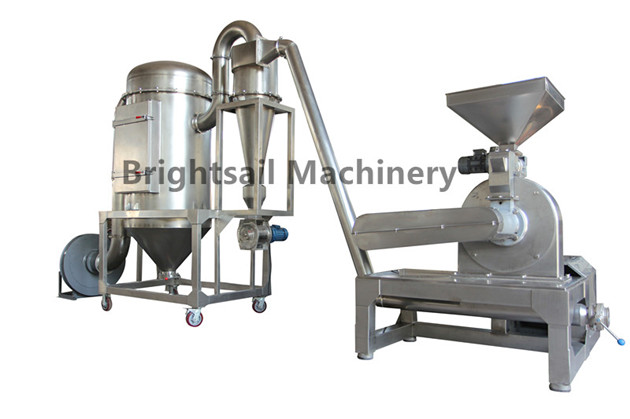

                    New product- high speed pin mill




Production:

This machine has no screen in mill chamber,so it can grind oily material, like cocoa,coffee powder.
The rotation speed can reach 10000 rpm to make fine powder.

Application:

Specialized in milling for various fruit、walnuts、coffee beans、cocoa beans,peanuts、rice and other food and chemical raw material.

Principle:

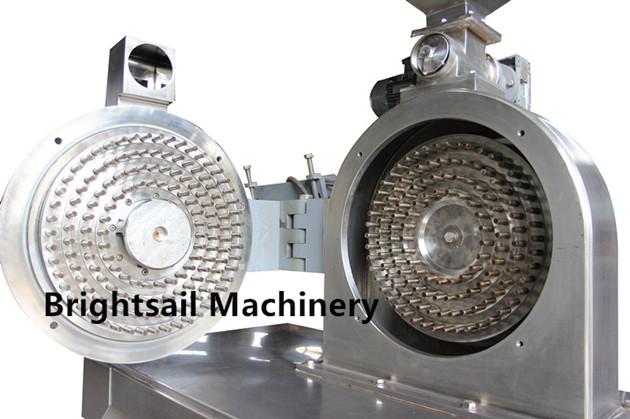

Bidirectional pair wheels adopt the way of reverse rotation of front and back grinding wheels, thus this way improves the crushing effect. Double discs install the needle cylinders whose diameters are different, every part arrays needles and bars through the technology of three dimensional simulation, designing the layout rationally and thus it can control the materials to achieve the effective split effect in the gap of needle bar efficaciously. Needles and bars can adopt the shape of hexagonal、square、wolf teeth and so on according to crushing materials. The shape of wolf teeth is all called corn cob rollermill, and this machine has the special effect for the engineering plastic with high melting point to flour at room temperature. Needle and bar mill adopt the way of quantitative feeding of screw, controlling the even motion of materials in the inward of millstone. The ways of discharge are output in the natural state and discharge of negative pressure method. This machine does not have mesh screen in the chamber of grinding wheel, and it adjusts the fineness of crocus through the wire-speed of mill wheel, it can also classify materials through external grading method.


If you are looking for cocoa powder grinder;cocoa powder grinding machine;coffee bean grinding machine;wet rice flour mill;rice mill; our BSZ-high speed pin mill is very good choice!
