New product-cryogenic grinder

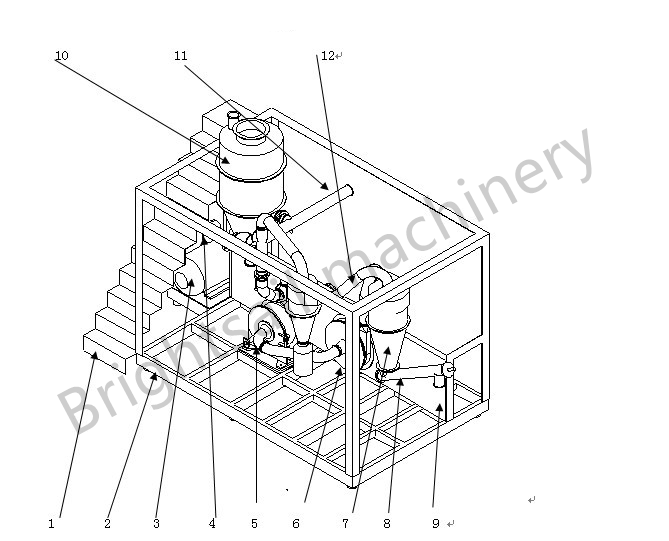

1:escalator  2:frame  3:main motor   4:feeding assembly  5:host  6:traction system

7:separation system   8:oblique discharge system  9:insulation layer(partially hidden)

10:turn flow pre-cooling bunker  11:exhaust pipe  12:link pipeline

Production:

The cryogenic grinder  adopts liquid nitrogen as cooling medium, which can preserve the material which will not change the original composition.

It can grind heat-sensitive material into fine powder, like fruit, vegetable, soybean, sesame, herb(medicine), spice, plastic, rubber...etc.

Working method：

This machine can use microcomputer control unit for volume and the amount of nitrogen.

Microcomputer is to set automatic level control system as to customer's requirement, operators just need to set the expected value of fineness, then the intelligent control system will automatically adjust the temperature, the refrigerant valve size, the discharge rate,etc based on the argument point by the host current,chamber pressure machine and pipe flow.

Features:

1. Optimal retention of aroma and strength, in contrast to normal grinding, where approx.15-43% essential oils are lost, while the loss with cryogenic grinding is minimal(approx.3-10%).

2. High grinding fineness,low energy consumption, output is 2-3 times than that of normal pulverizeing.

3. According to the temperature of material embrittlement point, adjust the best crushing temperature.

4. Material explosion-proof, anti-oxidation,etc.

5. Trouble-free stable processing.

*Following is the video of cryogenic grinder on You Tube.

https://www.youtube.com/watch?v=katJX7UtxzU
