Rice flour is a staple ingredient in countless culinary traditions worldwide, from Asian rice cakes and noodles to gluten-free baked goods in Western markets. The quality of rice flour—defined by particle size, uniformity, and purity—directly impacts the texture, taste, and shelf life of final products. Choosing the right grinding equipment is therefore a critical decision for food processors, small-scale producers, and industrial manufacturers alike. Two of the most widely used machines for rice flour grinding are hammer mills and air classifier mills, each with distinct strengths, limitations, and ideal use cases.
How They Work: A Technical Breakdown

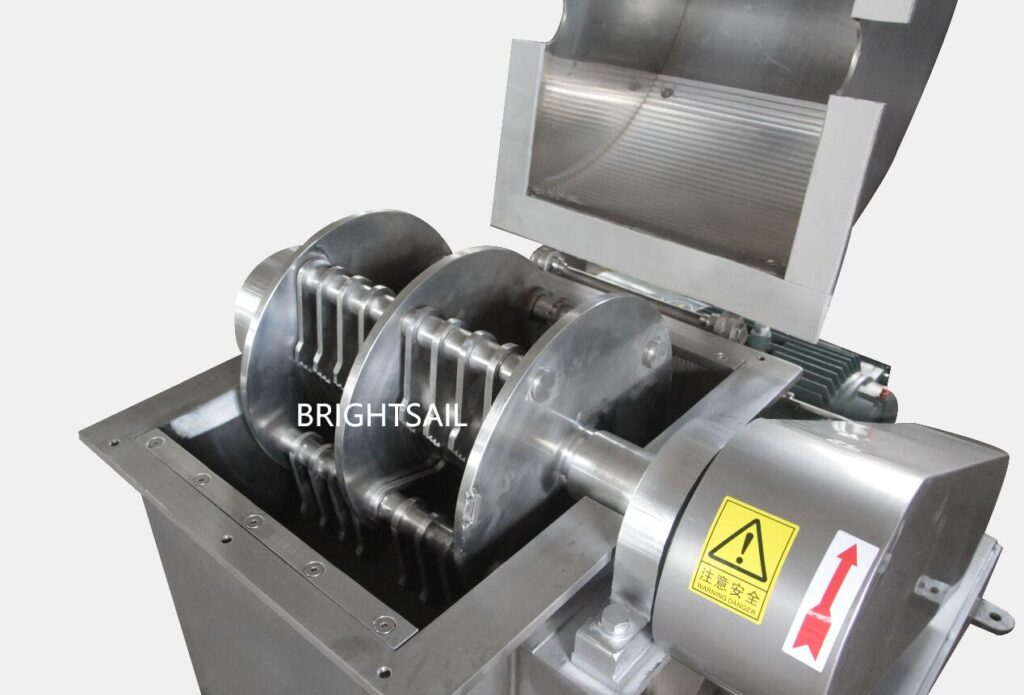

Hammer Mill utilizes high-speed rotating hammers to impact the material, with particle size controlled by a screen. Its structure is relatively simple, relying on impact and shear forces for pulverization, making it suitable for applications requiring medium fineness.
Air Classifier Mill (ACM), on the other hand, combines impact milling with dynamic air classification. Material is ground in the milling chamber, after which a built-in classifier wheel separates particles by size. Fine powder is discharged, while coarse particles are recirculated for further grinding. This closed-loop system enables precise particle size control.
Key Performance Comparison
1. Finished Product Fineness & Distribution
- Hammer Mill: Typically achieves 80-200 mesh (approx. 180-75 microns). Particle size distribution (PSD) is relatively wide. Best for applications where strict uniformity is not critical.
- Air Classifier Mill: Easily achieves 150-500+ mesh (approx. 100-25 microns). Produces a very narrow, consistent PSD. Ideal for high-end applications requiring ultra-fine flour and tight specifications.
2. Heat Generation & Nutrient Preservation
- Hammer Mill: Generates significant heat due to high-speed impact friction. This can raise product temperature, potentially affecting moisture content, color, and heat-sensitive nutrients in rice flour.
- Air Classifier Mill: The integral cooling effect of the high-volume air flow helps dissipate heat more effectively. This results in lower operating temperatures, better preserving the native properties, aroma, and nutritional quality of the rice.
3. Energy Efficiency & Yield
- Hammer Mill: Generally has lower initial power consumption. However, achieving a fine, uniform grind may require multiple passes, reducing overall yield and efficiency for high-spec products.
- Air Classifier Mill: Higher upfront energy use for the classifier and fan system. This is offset by higher single-pass yield of on-spec product, less re-grinding of fines, and superior overall efficiency for fine milling.
4. Flexibility & Control
- Hammer Mill: Fineness is changed by swapping screens—a manual process. Limited ability to adjust PSD independently.
- Air Classifier Mill: Offers independent, on-the-fly adjustment of fineness (via classifier speed) and product throughput (via feeder speed). Exceptional flexibility for producing different grades from the same machine.
5. Maintenance & Operating Costs
- Hammer Mill: Lower initial investment. Consumables (hammers, screens) wear quickly, especially when milling abrasive materials, leading to higher long-term maintenance costs and potential downtime.
- Air Classifier Mill: Higher initial capital cost. Designed with durable wear parts and no screens to clog or replace frequently. Lower long-term maintenance costs and higher operational reliability for continuous production.
FAQs:
Q1: We need to produce superfine rice flour for gluten-free baking and baby food. Which mill is recommended?
A: For applications demanding ultra-fine, consistent, and high-quality flour like gluten-free baking or baby food, the Air Classifier Mill is unequivocally the better choice. Its superior control over fineness, lower heat generation, and narrow particle distribution are essential for these premium products.
Q2: Is the Air Classifier Mill much more difficult to operate and maintain?
A: Not necessarily. While it is a more sophisticated machine, modern ACMs are designed for user-friendly operation with centralized controls. Maintenance often proves simpler in the long run due to the absence of easily clogged screens and more durable construction.
Q3: Can a Hammer Mill produce flour as fine as an ACM?
A: Technically, with a very fine screen and multiple passes, it can approach similar fineness. However, this is highly inefficient, leads to excessive heat and energy use, rapidly wears parts, and still results in a wider, less uniform particle distribution compared to an ACM.
Conclusion
The choice between a Hammer Mill and an Air Classifier Mill ultimately hinges on your product specifications, production scale, and quality goals.
- Choose the Hammer Mill for its rugged simplicity, lower initial cost, and when producing standard, medium-fine rice flour where optimal uniformity and heat control are not the primary concerns.
- Invest in an Air Classifier Mill when your business demands high-quality, consistent, ultra-fine rice flour for premium applications. Its precision, efficiency, cooler operation, and flexibility justify the higher initial investment through superior product quality, higher yields, and lower operating costs over time.
For modern rice flour production targeting competitive markets—especially gluten-free, health foods, or specialty flours—the Air Classifier Mill represents the technological benchmark.
