In the food and pharmaceutical industries, the fineness and purity of powders, along with the handling of heat-sensitive materials, are critical considerations. When raw materials require grinding into micron-level powders, the selection of equipment becomes particularly crucial. Whilst traditional mechanical mills (such as hammer mills and ball mills) remain dominant, air classifying mills are increasingly becoming the preferred choice for enterprises with high standards.
Core Working Principle Comparison
Mechanical Grinding Mills:
Primarily rely on physical impact, shearing, or compression to pulverise materials. For instance, ball mills utilise grinding media (such as steel balls) within a rotating cylinder. This direct action generates localised high temperatures, typically resulting in a broad particle size distribution that necessitates subsequent classification processing.
Air Classifying Grinding Mill:

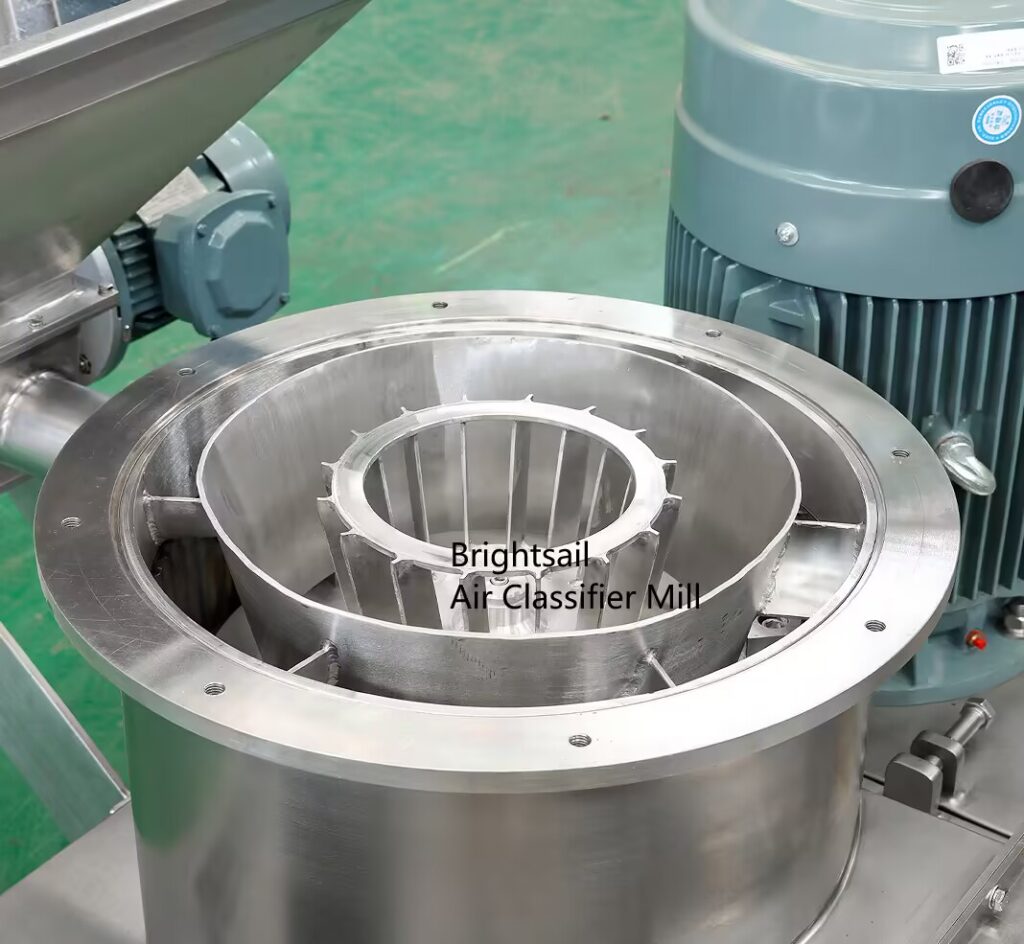

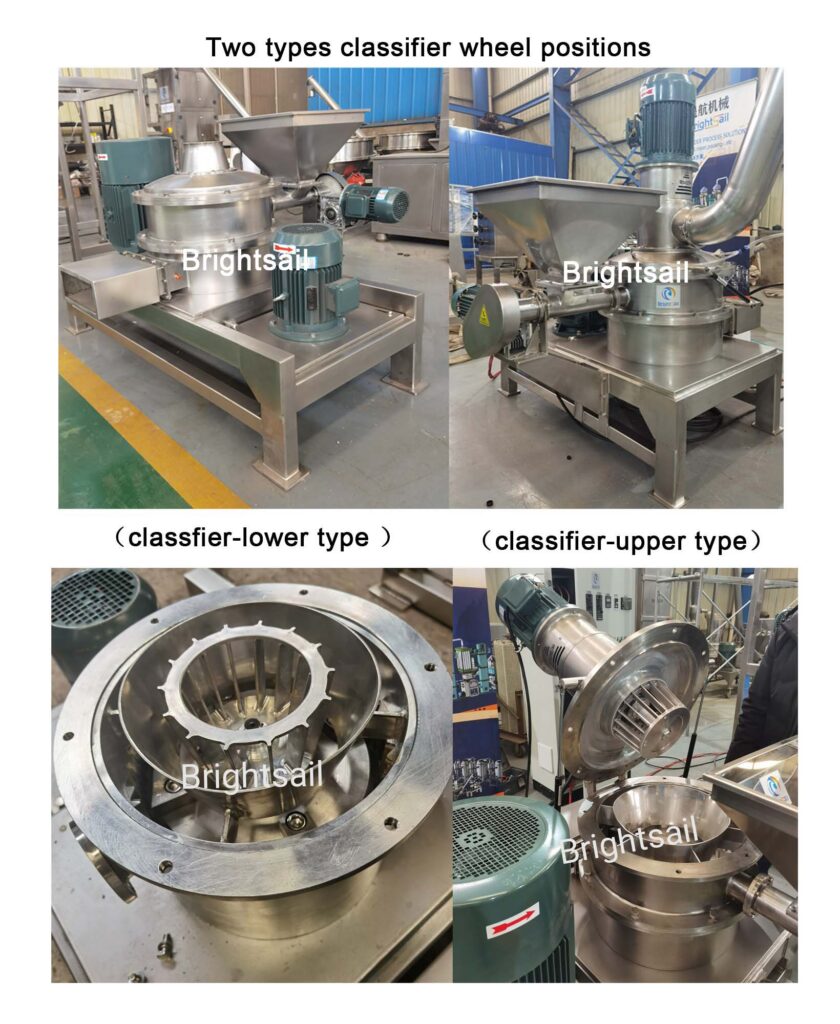

Integrates grinding with air classification. Material is accelerated by high-velocity airflow within the grinding chamber, causing particles to collide and fracture against each other (rather than against grinding tools). Simultaneously, an integrated dynamic classifier wheel separates fine particles meeting the target size by balancing centrifugal force with air resistance. Oversized particles are returned for secondary grinding. This process achieves continuous, synchronous grinding and classification.
Five Key Advantages of Air Classifier Mills
- Superior Handling of Heat-Sensitive Materials
Many ingredients in food and pharma (e.g., vitamins, flavors, extracts, probiotics) are heat-sensitive. Continuous friction in mechanical mills generates significant heat, risking degradation of actives, loss of flavors, or melting/agglomeration. Air classifier mills rely on high-speed air flow, which also provides a cooling effect, minimizing temperature rise and perfectly protecting thermolabile components. - Narrower Particle Size Distribution & Precise Control
Mechanical mills often produce a wide range of particle sizes, requiring additional screening (inefficient and a contamination risk). The integrated classifier wheel in an air classifier mill allows precise “cut” of the size distribution, easily achieving powders with D90 < 15 microns or finer, with a concentrated distribution. This is vital for drug dissolution rates, food mouthfeel, and stability.
- Higher Hygiene Standards & Cleanability
Equipment design complies with GMP (Good Manufacturing Practice) requirements, featuring smooth, crevice-free interiors, often in stainless steel with polished finishes. The fully enclosed system prevents external contamination, and integration of CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place) systems is easier. Mechanical mills have more complex structures where grinding media are harder to clean, posing higher cross-contamination risks. - Elimination of Metal Contamination, Ensuring Purity
Grinding media (e.g., hammers, balls) and chamber walls in mechanical mills wear over time, introducing metal particulates into the product. The “inter-particle collision” principle of air classifier mills means no direct metal-to-metal contact in the core grinding zone, eliminating metal contamination at the source—a critical advantage for pharmaceuticals and high-end foods. - Higher Energy Efficiency & Throughput
For achieving the same fineness, the integrated design of an air classifier mill (combining grinding and classification in one step) is often more energy-efficient than a “mechanical mill + external screening” setup. Its pneumatic conveyance also facilitates automated continuous production, boosting overall capacity.
Conclusion: How to Choose?
| Feature | Air Classifier Mill | Traditional Mechanical Mill |
|---|---|---|
| Heat-Sensitive Material | Excellent | Fair/Poor |
| Particle Size Control | Precise, narrow distribution | Broad, needs post-classification |
| Hygiene & Cleanability | Excellent (GMP-suitable) | More challenging |
| Metal Contamination Risk | Very Low | Higher |
| Energy Efficiency | Generally Higher | Relatively Lower |
| Initial Investment | Higher | Typically Lower |
FAQ
Q1: Can air classifier mills handle all types of food and pharmaceutical materials?
A: They are excellent for most dry, brittle materials. However, for high-fat, high-sugar, high-fiber, or extremely tough materials, pre-processing or special design may be needed to prevent adhesion or clogging.
Q2: Is it truly more energy-efficient than a mechanical mill?
A: For fine powders (e.g., <30 microns), its integrated design often offers better overall energy efficiency. For simple coarse grinding, a mechanical mill might have lower specific energy consumption.
Q3: Is maintenance for air classifier mills complex?
A: Core components like the classifier wheel and nozzles require regular wear inspection. However, due to the absence of complex mechanical grinding elements, maintenance frequency and complexity are often lower than for high-speed mechanical impact mills.
Q4: How is the final product particle size controlled?
A: It’s easily adjusted by changing the classifier wheel speed, air flow rate, and feed rate. No screen changes are needed, offering more convenient operation and a wider adjustment range.
Q5: Does it pose a dust explosion risk?
A: Any equipment handling fine powders carries a potential risk. However, modern air classifier mills can be readily equipped with inert gas (e.g., nitrogen) blanketing systems, explosion vents, and fire suppression systems, ensuring high safety levels.
