Introduction:

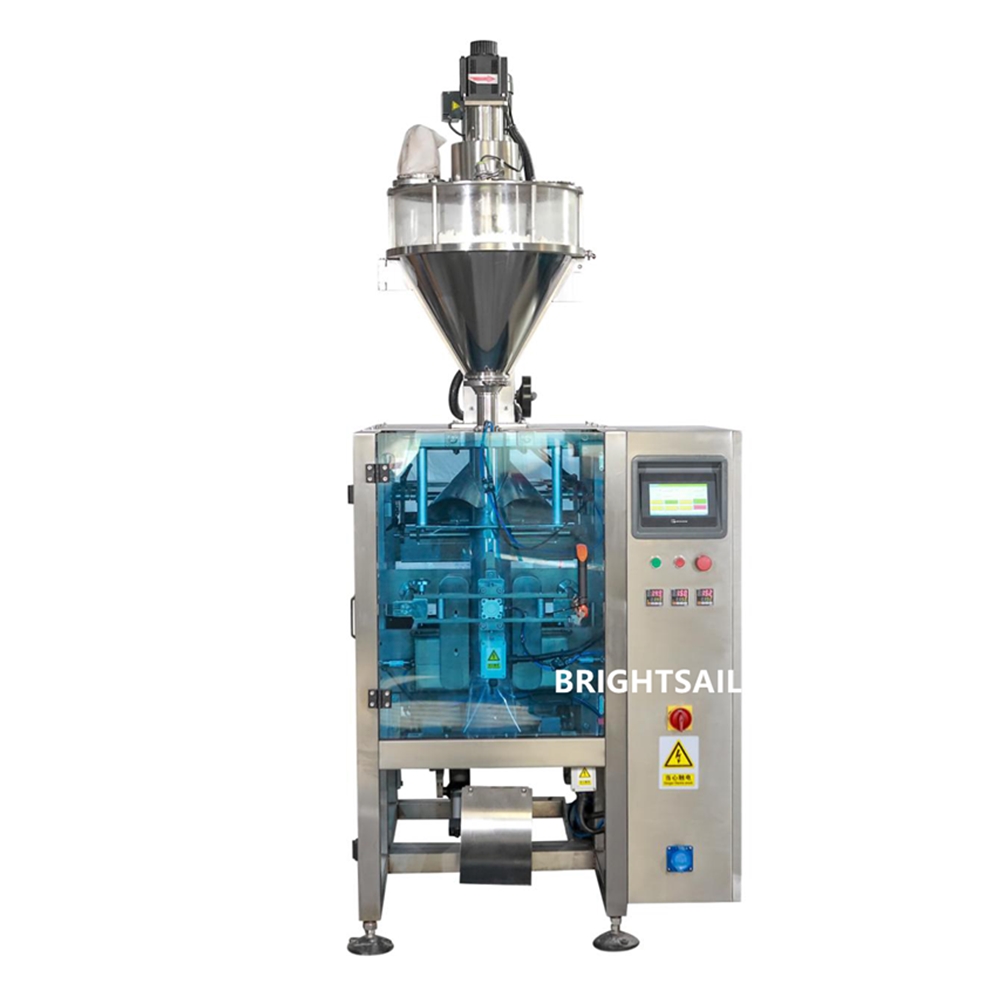

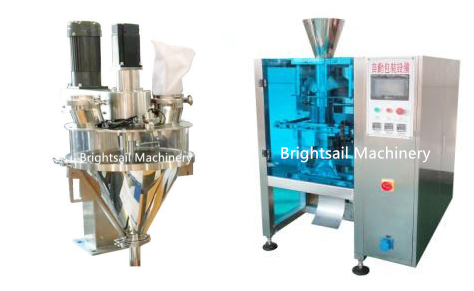

BSPM automatic packing machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing powder and granule material such as spice powder, sugar, coffee powder, icing sugar, rice flour...etc.
The powder filling machine uses PLC Servo System and pneumatic control system and super touch screen to compose the drive control center, which maximize the whole machine’s control precision , reliability and intelligentized level.
Technical data:
|
Measure method
|
Auger dosing
|
Weighing feedback tracking
|
|
Bag-making size
|
(W)80-200mm (L)100-300mm
|
(W)100-250mm (L)100-350mm
|
|
Filling weight
|
10-5000g(by changing mould)
|
|
Packing precision
|
≤1%
|
|
Packaging speed
|
25-60 bags/min
|
|
Power
|
6 kw
|
|
Pressure
|
6-8 kg/cm2
|
|
Use tolerance
|
0.2 m3/min
|
|
Weight
|
700 kg
|
950 kg
|
|
Dimension
|
1300×1500×2600 mm
|
1. Equipped with safety protection, comply with firm’s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision, reliability and intelligentized level.
4. Touch screen can store the technical parameters of various kinds of products, it is unnecessary to reset while products changing.
5. With error indicating system, which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers’ different requirements.
