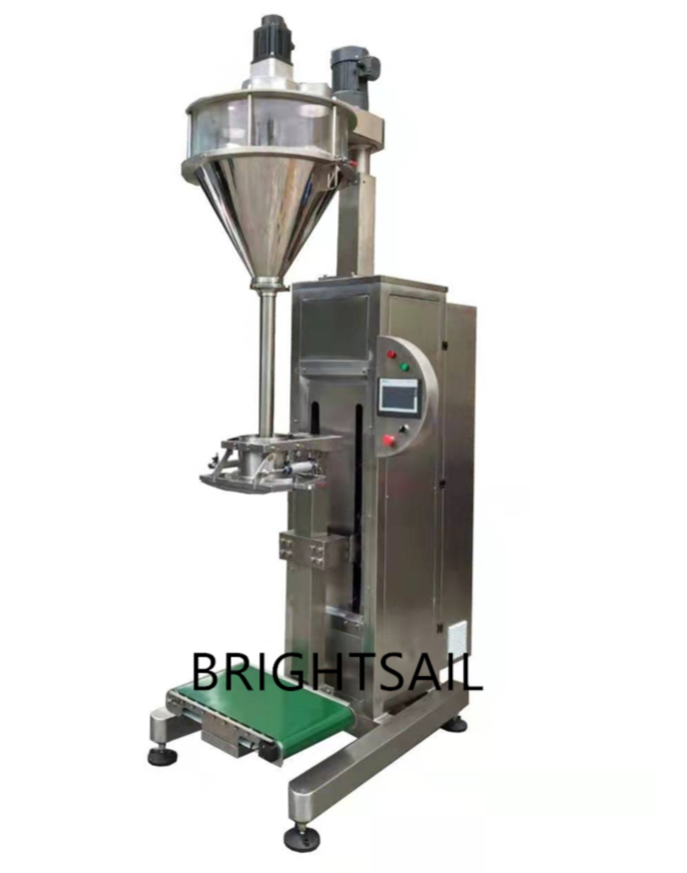

BSPM-B100 Superfine powder big bag packaging machine

Product Introduction:

The BSPM-B100 packaging machine is designed in accordance with the national GMP standard, and is mainly developed and designed for the ultra-fine powder that is prone to dust and high-precision packaging requirements. According to the signal given by the weight sensor installed under the container, it completes two-speed filling, metering, and lifting. It is suitable for packaging additives, carbon powder, dry fire extinguisher powder, other ultra-fine powders, and powders with high-precision packaging requirements. The main body of the machine is made of 304 stainless steel, and the motor, cylinder, electrical accessories, pneumatic components, etc. are all selected well-known brands, or customers can specify brands.


Model

BSPM-B100

Package weight

5-50kg

  • Packaging Accuracy

5-20Kg,≤±0.1-0.2%

≥20Kg,≤±0.05-0.1%

Packaging speed
2-4packs per minute
  • Power Supply

3P AC380V 50Hz

    Total power

3.3KW

Total weight

450KG

    Material box volume

100L

Dimensions

800mm*1200mm*3200mm

Air source 0.6-0.8Mpa (The air compressor is provided by the customer)

1. A weight sensor is installed under the container tray, fast and slow filling according to the preset weight to ensure high packaging accuracy.
2. Servo motor drives the tray up and down, the lifting speed can be set arbitrarily, and basically no dust is raised to pollute the environment during filling.
3. Servo motor and servo drive control screw, stable performance and high precision.
4. PLC control, touch screen man-machine interface display, easy to operate.
5. All stainless steel structure; combined material box, easy to clean.
6. The filling head is equipped with an adjustable height device, which can easily achieve a variety of specifications for packaging.
7. The fixed screw installation structure will not affect the material properties during filling.
8. Work flow: manual bagging or canning → container raising → fast filling, while the container drops → weight reaches the preset value → slow filling → weight reaches the target value → stop → manually take out the container.
9. Pneumatic bag clamping device and can holding device are available for selection. You only need to choose different devices to meet the requirements of canning and bagging.
