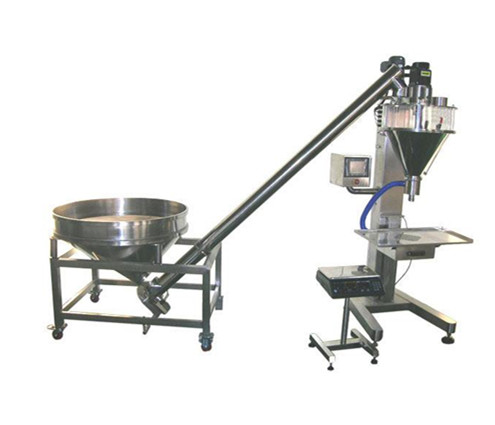

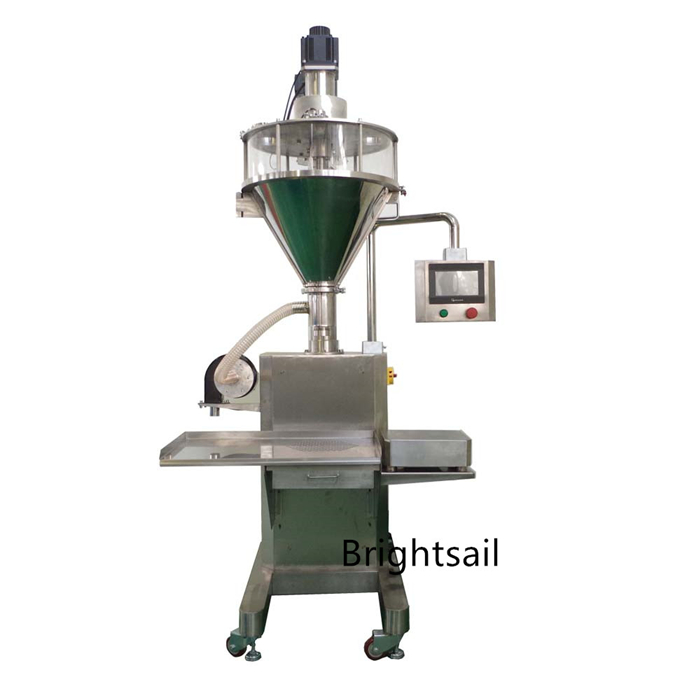

10-5000g semi automatic powder packing machine


Introduction:

BSPM semi automatic packing machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing powder and granule material such as spice powder, sugar, coffee powder, icing sugar, rice flour...etc.


The powder filling machine uses PLC Servo System and pneumatic control system and super touch screen to compose the drive control center, which maximize the whole machine’s control precision , reliability and intelligentized level.

Technical data:

Model

BSPM-A

BSPM-B

BSPM-C

Dosing Technique

By auger

Filling Range

10-500g

10-2000g

10-5000g

Accuracy

≤ 100g,≤±2%; 100 – 500g,≤±1%;≥500g,≤±0.5%

(depend on product property and filling weight)

Speed

10~45 bags/min (depends on worker handle speed)

Container Model

Can, Bag, Bottle, etc.

Hopper Size(L)

25

50

75

Motor(KW)

1.5

1.5

2.5

Material

Stainless steel 304


1. Equipped with safety protection, comply with firm’s safety management requirements.

2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.

3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision, reliability and intelligentized level.

4. Touch screen can store the technical parameters of various kinds of products, it is unnecessary to reset while products changing.

5. With error indicating system, which help to handle the trouble immediately.

6. Make pillow bags and hanging bags in terms of customers different requirements.
