During recent overseas equipment consultations, we encountered a very typical and representative selection misunderstanding. A Pakistan client thoroughly evaluated our ACM equipment and was highly satisfied with its grinding fineness, particle uniformity and overall processing performance for thermal-sensitive powders.
However, during the final solution confirmation, the client proposed a cost-saving idea: Is it possible to purchase only the grinder part of the Air Classifying Mill and match it with a standalone cyclone separator for production?
The client’s logic was straightforward. They believed the grinding part undertakes the core crushing work, while the cyclone handles material discharging. By omitting the dust collector and fan system, they thought they could reduce investment costs while maintaining normal production.

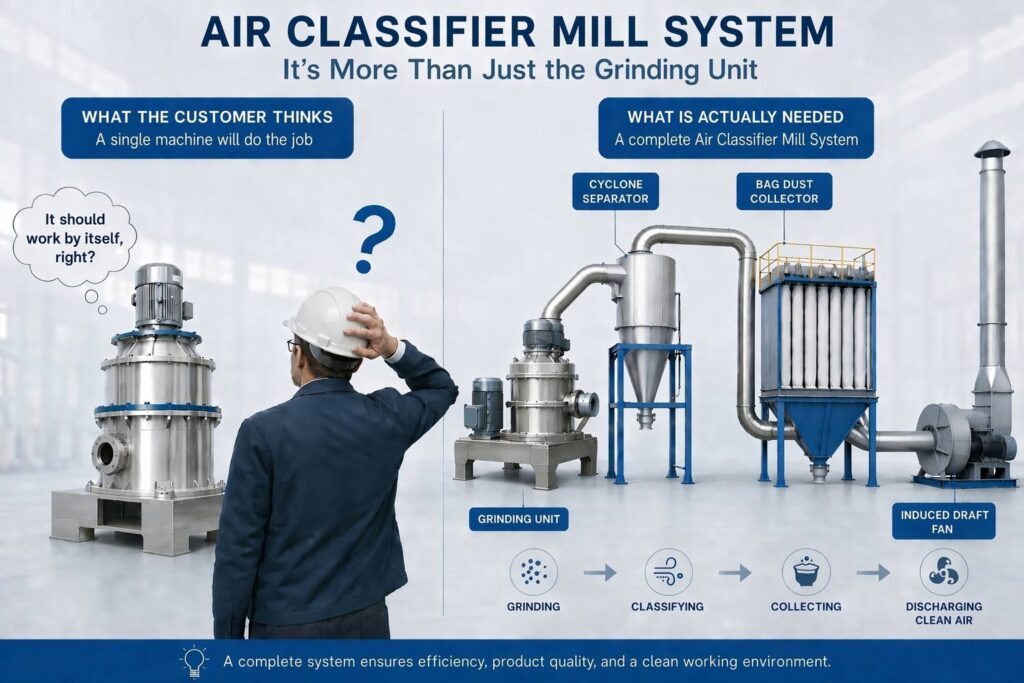

We clearly explained to the client that an Air Classifier Mill is structurally and mechanically different from ordinary hammer mills. It cannot operate stably with only a grinding part and a cyclone. A complete set of supporting systems including cyclone separator, bag dust collector and induced draft fan is mandatory for stable and qualified mass production.
This is far from an individual case. Every year, many new customers ask the same question: whether they can buy only the grinding part of an ACM pulverizer for independent operation. Today, we will thoroughly explain the working logic of this powder grinding equipment based on real client cases and professional mechanical principles, helping global users avoid typical selection pitfalls.
1. Core Misunderstanding: Applying Hammer Mill Logic to Air Classifying Mill

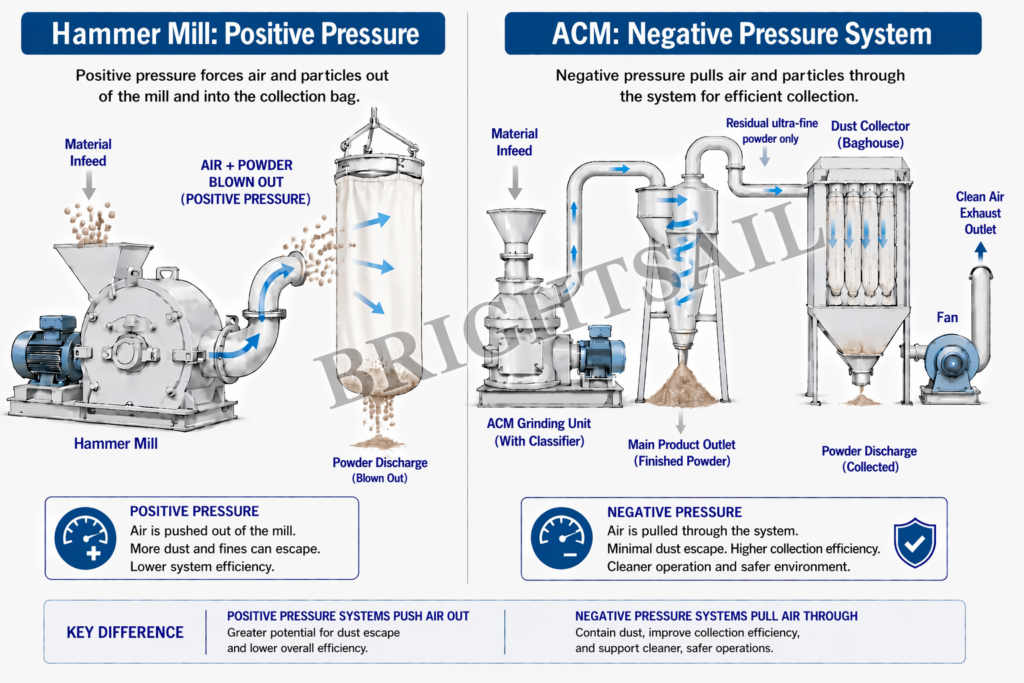

The root cause of this wrong perception is the confusion between ordinary hammer mills and Air Classifier Mill equipment. Most traditional grinding machines adopt a positive pressure working mode. The high-speed rotating rotor generates internal air pressure to throw ground powder out of the grinding chamber automatically.
Even without matched fans or dust removal systems, simply hanging a receiving bag can realize basic discharging and grinding. Traditional hammer mills have no strict requirements for rear-end air path supporting equipment.
In sharp contrast, the Air Classifying Mill is a full negative pressure air-classified grinding system. The standalone grinding part only provides impact crushing and preliminary classification functions. It has no capacity for material discharging, air supply or heat dissipation.
To put it simply and professionally: Hammer mills discharge powder by self-generated centrifugal force, while ACM pulverizers discharge powder relying on fan negative pressure suction. Without a complete negative pressure air system, a single grindinging part cannot achieve continuous and qualified production.
2. Professional Principle: Why a Single ACM grinding part Cannot Work Alone

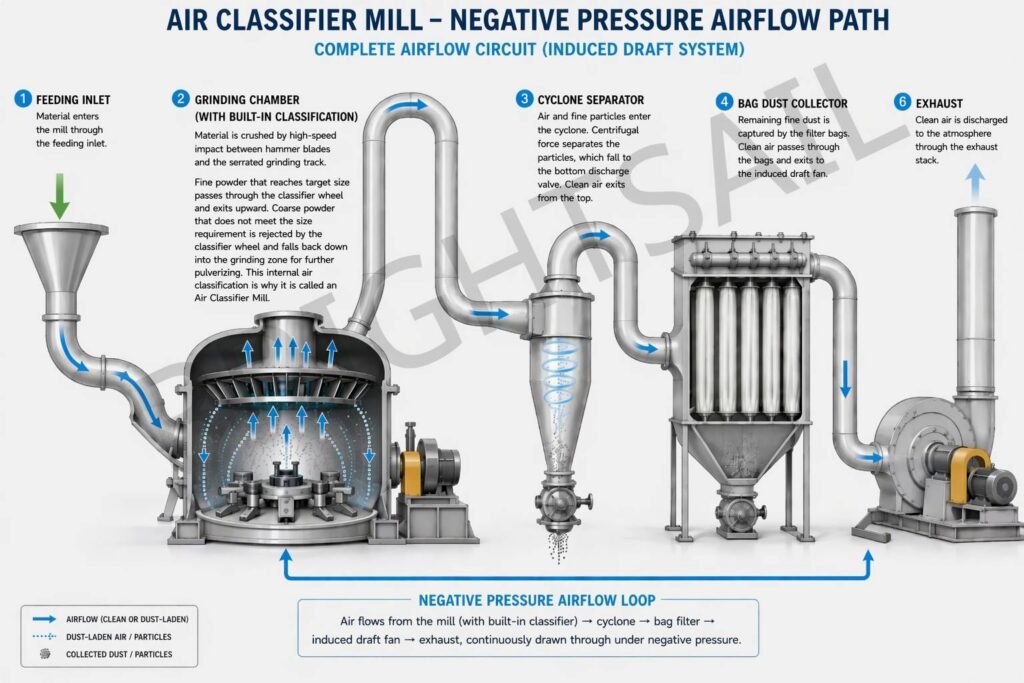

The entire production process of the ACM series Air Classifier Mill is driven by the stable negative pressure air field generated by the rear-end induced draft fan. Four core procedures — crushing, classification, discharging and heat dissipation — all rely on circulating airflow, with none able to work independently.
During formal operation, the fan continuously extracts air to form a stable negative pressure environment inside the chamber and pipelines. The ultrafine powder produced by grinding is carried out of the crushing chamber by airflow. After screening by the classification wheel, qualified fine powder enters the collecting system, while coarse powder returns to the grinding area for re-crushing.
If only the grinding part is used without supporting negative pressure power, the following inevitable problems will occur:
- 1. Ground powder cannot be extracted out and accumulates inside the chamber, causing rapid material blockage and machine stalling;
- 2. Materials stay in the grinding chamber repeatedly without discharging, resulting in continuous heat accumulation. For thermal-sensitive powders, high temperature will cause softening, wall adhesion and caking, completely ruining the finished products;
- 3. The classification wheel loses airflow coordination, failing to separate coarse and fine powder. The final powder features chaotic fineness and poor particle size distribution, failing to meet high-end industrial standards;
- 4. Unbalanced negative pressure leads to abnormal equipment load, increased vibration and noise, and greatly shortened service life of wearing parts.
Similarly, the client’s solution of “grinding part plus independent cyclone” is not feasible. The cyclone separator only realizes gas-solid separation without air suction power. It cannot form systemic negative pressure, so it cannot solve the core problems of discharging, heat dissipation and classification for the Air Classifying Mill.
3. Answers to Top 3 Frequently Asked Configuration Questions
Based on years of practical project experience, we have summarized authoritative and practical answers to the most common customized configuration questions for ACM pulverizer users.
- Q1: Can I buy only the ACM grindinging part and use my local fans, cyclones and dust collectors?
Answer: Yes, but with strict preconditions.
Many long-term cooperative large factories choose to purchase only our Air Classifier Mill grinding part to save procurement costs, while adopting their existing mature rear-end air path systems.
However, the self-provided fan, cyclone separator and dust collector must have air volume, air pressure and processing capacity equal to or higher than the original factory standard configuration. If the supporting equipment parameters are too small, insufficient air volume and pressure will lead to slow discharging, reduced output, material residue and frequent blockage. Production can only be stable with matched parameters.
- Q2: Can I remove the cyclone and only use the ACM grindinging part plus dust collector?
Answer: Theoretically feasible, only applicable for few specific scenarios, not recommended for 90% of production conditions.
This configuration cancels the pre-separation function of the cyclone, and all powder directly enters the dust collector with airflow. To ensure stable operation, the dust collector specification must be significantly enlarged compared with the standard matching model.
This solution has obvious drawbacks. It brings extremely difficult cleaning work and serious material residue problems, easily causing cross-contamination. Therefore, it is only suitable for production lines with single raw materials, no frequent material replacement and no high hygiene requirements. It is never recommended for multi-formula, multi-color and high-purity powder production.
- Q3: Can multiple ACM grindinging parts share one set of large fans and dust collectors?
Answer: Completely feasible, with mature practical cases.
We once served a large chemical enterprise that purchased four sets of Air Classifying Mill grinding parts. The client grouped them into two pairs and shared one super-large self-built fan and dust removal system, realizing high-efficiency mass production and greatly reducing overall equipment investment.
Nevertheless, this solution requires professional parameter verification by our engineers. We need to accurately calculate the total air volume, air pressure and pipeline resistance to balance the negative pressure of each grinding part, avoiding uneven discharging, unstable fineness and air path imbalance losses.
4. Two Standard and Reliable ACM Production Configurations
- 1. Complete Standard Configuration (First Choice for Most Users)
ACM grinding part + matched cyclone separator + pulse bag dust collector + special induced draft fan + sealed standard pipeline
Advantages: perfectly matched air path, stable fineness, guaranteed output, convenient cleaning, support for frequent material switching and ultra-low failure rate. It is suitable for mass production of various thermal-sensitive powders and ultrafine industrial powders.
- 2. Customized Cost-Saving Configuration (Exclusive for Large Factories & Old Clients)
Purchase only original Air Classifier Mill grinding part, with our engineers conducting professional parameter calculation to match the client’s existing air path, powder collecting and dust removal system.
Advantages: effectively reduce equipment procurement costs while ensuring stable operation. The core premise is professional parameter matching; random private collocation is strictly prohibited.
5. Conclusion: The Core of ACM Is the Complete Negative Pressure System
Many customers mistakenly regard the grinding part as the core of the ACM pulverizer. In fact, the grinding performance, fineness consistency, output stability and temperature control effect are all determined by the complete negative pressure air circulation system.
The grinding part is only a single crushing unit. Without matched cyclone, dust collector and fan system, it cannot exert any professional processing performance. Cost-saving customization is acceptable, but blind simplification of core configurations will only lead to blockage, material adhesion, insufficient output and unqualified finished products, causing greater economic losses.
6. Professional Customized Solution Support
If you are planning an Air Classifying Mill production line, want to save investment costs by reusing existing fans and dust removal equipment, or need multi-machine shared air path solutions, feel free to contact Brightsail. We will provide sincere, objective and practical selection suggestions and customized configuration plans according to your material characteristics, target fineness, output requirements and on-site working conditions, helping you avoid all kinds of equipment selection risks.
