Walk down any supermarket aisle, and you’ll see it everywhere: chocolate, baked goods, beverages, and even health supplements. The humble cocoa powder is a powerhouse ingredient. But behind that rich, dark powder lies a critical process that defines its quality: grinding.

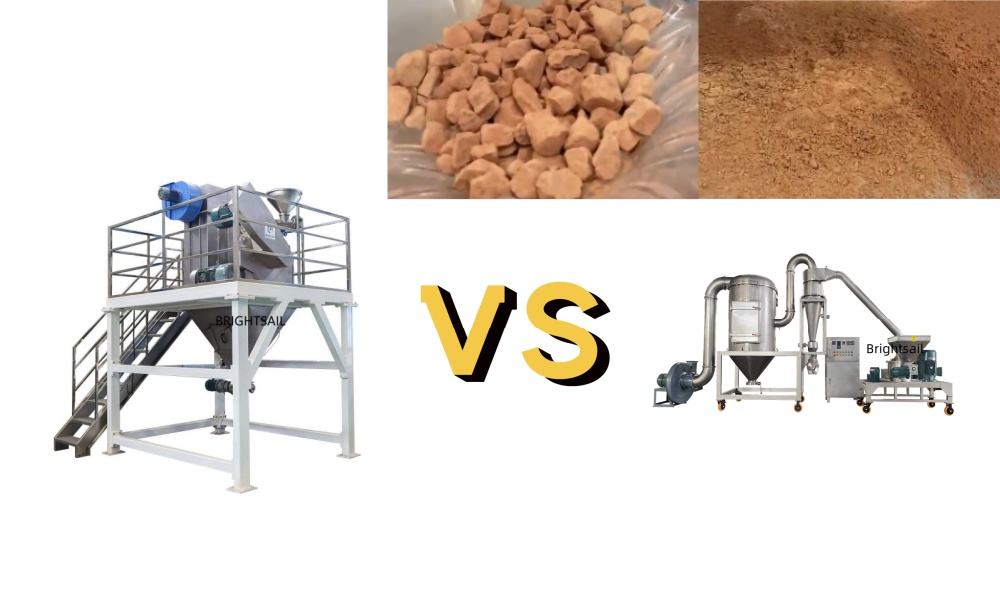

The journey from coarse cocoa cake to a fine, luxurious powder is pivotal. It dictates not just texture, but flavor release, mouthfeel, and performance in your final product. For producers, choosing the right grinding equipment is a key strategic decision. Two technologies often stand out: the Pin Mill and the Air Classifier Mill (ACM).
So, which one is the right fit for your operation? The answer isn’t a simple one-size-fits-all. It hinges on your target product specifications, capacity needs, and budget. Let’s break down the strengths and weaknesses of each to guide your choice.
First, What Are We Trying to Achieve?
Before we compare machines, let’s define our goals for grinding cocoa cake:
- Fineness: Achieving the desired particle size (often measured as D90).
- Mouthfeel: Creating a uniform particle distribution for a smooth, grit-free experience.
- Flowability: Ensuring the powder flows well for packaging and mixing.
- Flavor Preservation: Preventing heat buildup that can degrade delicate cocoa flavors.
- Efficiency & Cost: Maximizing throughput and minimizing energy consumption per ton.
The Pin Mill: The Robust and Cost-Effective Workhorse
A pin mill is a type of impact mill that uses a simple yet effective mechanism.
How it Works:
Material is fed into a central grinding chamber where two discs—one rotating at high speed (rotor) and one stationary (stator)—are studded with pins. The particles are shattered by repeated impacts and collisions between these pins. The resulting powder passes through a screen, which provides a basic level of particle size control.
Pin Mill for Cocoa: The Pros & Cons
- Advantages:
- Cost-Effective: Lower initial capital investment and generally simpler, cheaper maintenance.
- Simplicity & Versatility: Easy to disassemble, clean, and sanitize. Ideal for facilities that run multiple products and require frequent changeovers.
- Adequate Fineness: Perfectly suitable for producing standard-grade cocoa powders (e.g., D90 between 75-150μm) used in general baking and drinking chocolate.
- Cool Operation: With controlled feed rates and speed, it can manage heat-sensitive materials reasonably well.
- Disadvantages:
- Wider Particle Size Distribution (PSD): The output has a broader range of particle sizes. You may find a “tail” of coarser particles that can impart a slight grittiness.
- Limited Top-End Fineness: Struggles to achieve and consistently maintain ultra-fine specifications (e.g., D90 < 25μm) required for premium applications.
- Potential for Secondary Processing: To achieve a tighter PSD, a subsequent sieving or external classification step might be necessary.
Ideal Use Case:
- Production of standard baking and beverage cocoa powders.
- Small to medium-scale operations with a tight budget.
- Plants requiring a flexible, easy-to-maintain machine for diverse production runs.
The Air Classifier Mill (ACM): The Precision Artist for Premium Powders
An Air Classifier Mill is a sophisticated system that combines impact milling with integrated air classification in a single unit.
How it Works:
Material is fed into the grinding chamber and fractured by a high-speed rotor. The crushed particles are then carried by an air stream to an integrated classifier wheel at the top. This wheel acts as a precision gatekeeper: it spins at a variable speed, creating a precise centrifugal force. Only particles fine enough to overcome this force (“the cut point”) escape to the collection system. Oversized particles are rejected and returned to the grinding zone for further reduction. This internal closed-loop system is the core of its precision.
Air Classifier Mill for Cocoa: The Pros & Cons
- Advantages:
- Superior Fineness & Tight PSD: Excels at producing ultra-fine cocoa powders (D90 15-75μm+) with a very narrow, consistent particle distribution. This is the key to a perfectly smooth, “melts-in-your-mouth” texture.
- Precise Particle Control: By simply adjusting the classifier wheel speed, you can dial in your exact fineness requirement with high repeatability.
- Unmatched Product Quality: The absence of coarse particles results in an exceptionally silky powder, essential for high-end chocolate, gourmet desserts, and premium ice cream.
- High Efficiency: The internal recycling of coarse material prevents “over-grinding” and directs energy more efficiently, often achieving the target fineness in a single pass.
- Disadvantages:
- Higher Capital & Operating Cost: A more complex machine means a higher initial investment and typically higher maintenance costs.
- System Complexity: Operation and optimization require greater technical expertise. Cleaning can be more involved than with a pin mill.
- Sensitivity to Fat Content: Sticky, high-fat-content cocoa cake can sometimes lead to buildup and potential clogging in the classifier area.
Ideal Use Case:
- Production of premium, ultra-fine, red or alkalized cocoa powders for dark chocolate and confectionery.
- Manufacturers whose brand is built on superior texture and quality.
- Large-scale, continuous production lines where consistency and automation are paramount.
| Factor | Pin Mill | Air Classifier Mill |
| Cocoa Powder Fineness | 80-120 mesh (medium) | 100-400mesh (ultra-fine,consistent) |
| Flavor Retention | Moderate (grinding generates more heat) | Excellent (cool airflow prevents flavor loss) |
| Production Speed | Fast for medium-fine powder | Slightly slower for ultra-fine powder |
| Initial Investment | Lower (budget-friendly for small-scale) | Higher (precision technology = higher cost) |
| Operational Complexity | Simple (easy to maintain and operate) | More complex (requires airflow/ classifier tuning) |
Making Your Final Decision: Ask Yourself These Questions
- What is my target market and product positioning?
- Mass Market, Cost-Driven: A Pin Mill offers the best balance of cost and quality.
- Premium/Niche Market, Quality-Driven: An Air Classifier Mill is your tool for achieving a superior, value-added product.
- What is my specific particle size requirement?
- Check your product specs. If your D90 is > 60μm, a pin mill might suffice. For < 60μm and a tight PSD, the ACM is the unequivocal choice.
- What is my budget?
- Consider both capex and opex. A pin mill is a lower-risk entry point.
- What are my production scale and flexibility needs?
- For batch processing and frequent product changeovers, the pin mill’s simplicity wins. For high-volume, continuous runs of a single premium grade, the ACM’s efficiency shines.
The Bottom Line
The choice between a Pin Mill and an Air Classifier Mill is a choice between a versatile workhorse and a precision artist.
The Pin Mill is your go-to for robust, economical production of quality standard cocoa powders. The Air Classifier Mill is your investment in excellence, capable of producing the ultra-fine, sensorially superior powders that command a premium in the market.
By aligning your equipment choice with your business strategy, you can ensure you’re grinding your way to success, one perfect particle at a time.
