Introduction
With the upgrading of production standards in the food and fine chemical industries, traditional grinding equipment can no longer meet factory demands for larger capacity, superior hygiene, easy cleaning and low material loss. In recent years, the contraplex pin mill has become a top choice for equipment upgrades across global factories.
Compared with ordinary grinding machines, the pin mill supports diversified customized structures to fit different materials and processing requirements. Improper model selection often leads to common production problems, including material wall sticking, overheating, difficult cleaning and insufficient output. This guide covers structural differences, chamber types, special configurations and cryogenic spice grinding machine customization, helping you select the most suitable contraplex pin mill for your production line.
1. Structural Selection: Cyclone Pulse Type vs. Platform Dust Removal Type
Contraplex pin mill features two mainstream structures for chemical and food processing respectively, with obvious differences in feeding height, sanitation level and operational convenience.
1.1 Cyclone Pulse Structure (For Chemical Industry)
Designed for fine chemical powder processing, this pin mill comes with a low feeding height, enabling convenient manual feeding and automatic feeding connection for integrated production lines. Equipped with a cyclone separator and pulse dust removal system, the machine achieves fully sealed grinding, effectively preventing powder leakage and potential safety hazards. With stable output and reliable performance, it is ideal for general dry chemical powders.

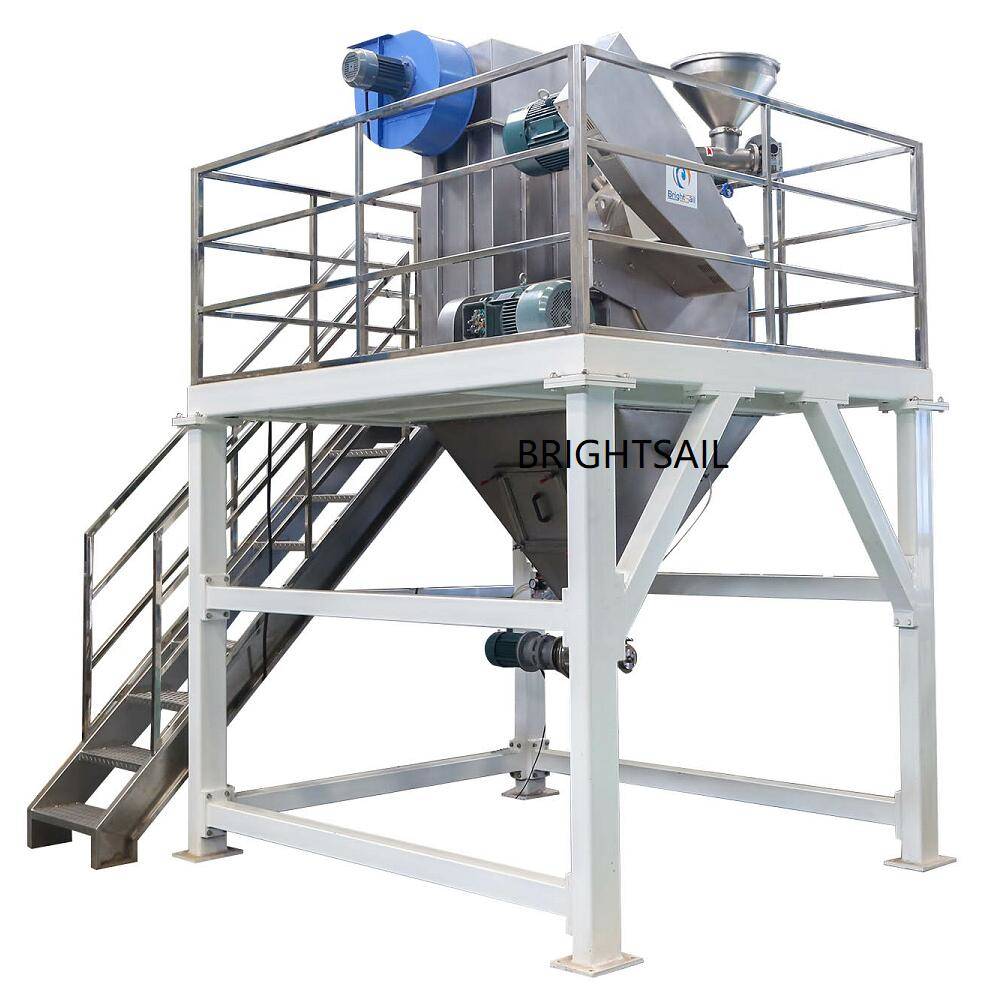

1.2 Platform Dust Removal Structure (For Food Industry)
Built to meet strict food-grade hygiene standards, this structure cancels complex conveying pipelines. After grinding, materials fall directly downward without pipeline transportation. This design fundamentally reduces powder residue, cross-contamination risks and cleaning workload. Although its feeding height is higher, it delivers outstanding sanitary performance. It is widely used for grinding flour, bean powder, pasta waste and various grain materials, which makes it the preferred upgrade solution for modern food factories.
2. Chamber Selection: Narrow Chamber vs. Wide Chamber
The chamber structure determines internal airflow, grinding temperature and material operating status, which is critical for processing heat-sensitive and sticky materials.

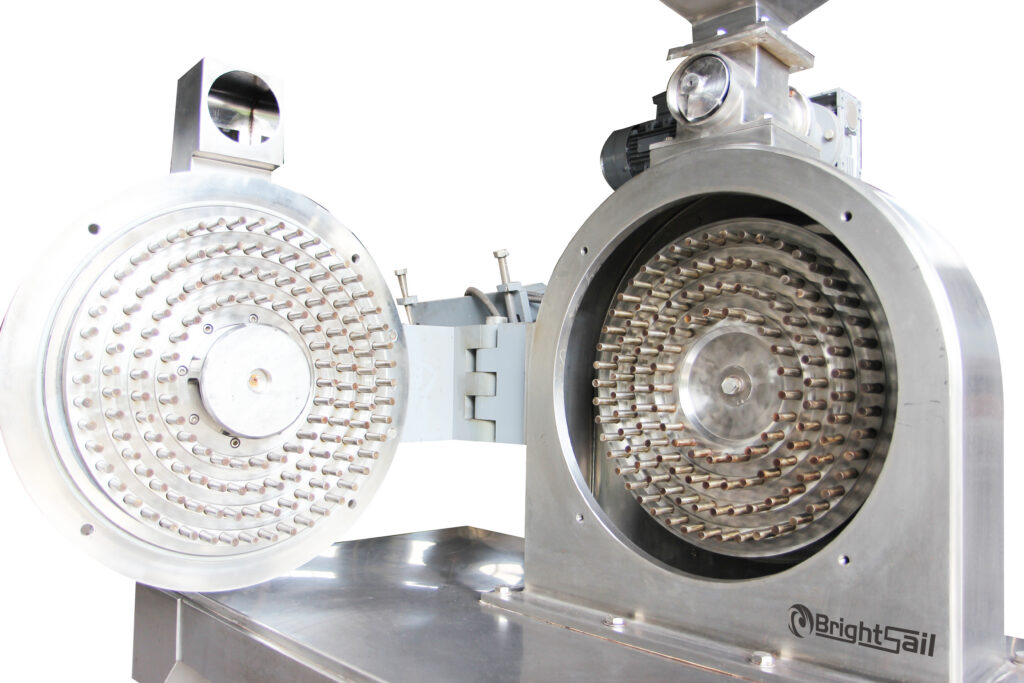

2.1 Narrow Chamber Pin Mill
The compact internal space increases the contact frequency between materials and pin discs, providing strong grinding force and high production efficiency. However, narrow chamber operation generates higher internal temperature. Therefore, this model is only suitable for heat-resistant, non-sticky dry materials. It is not applicable for spices, protein powder and sugar-containing materials, which are prone to overheating deterioration, caking and wall sticking.

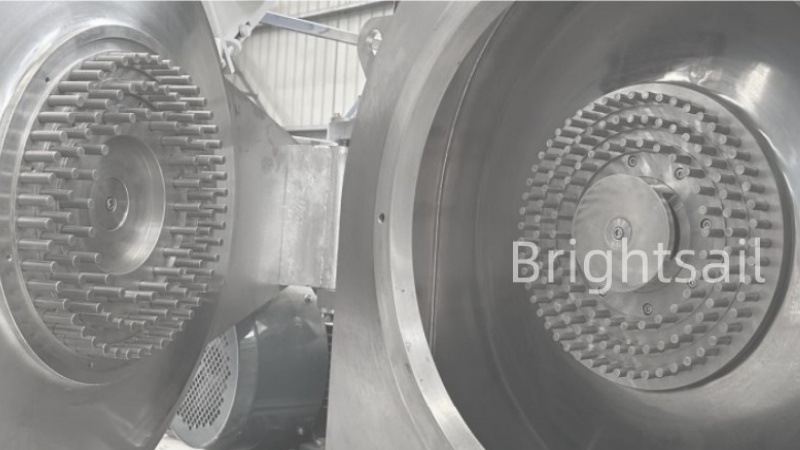

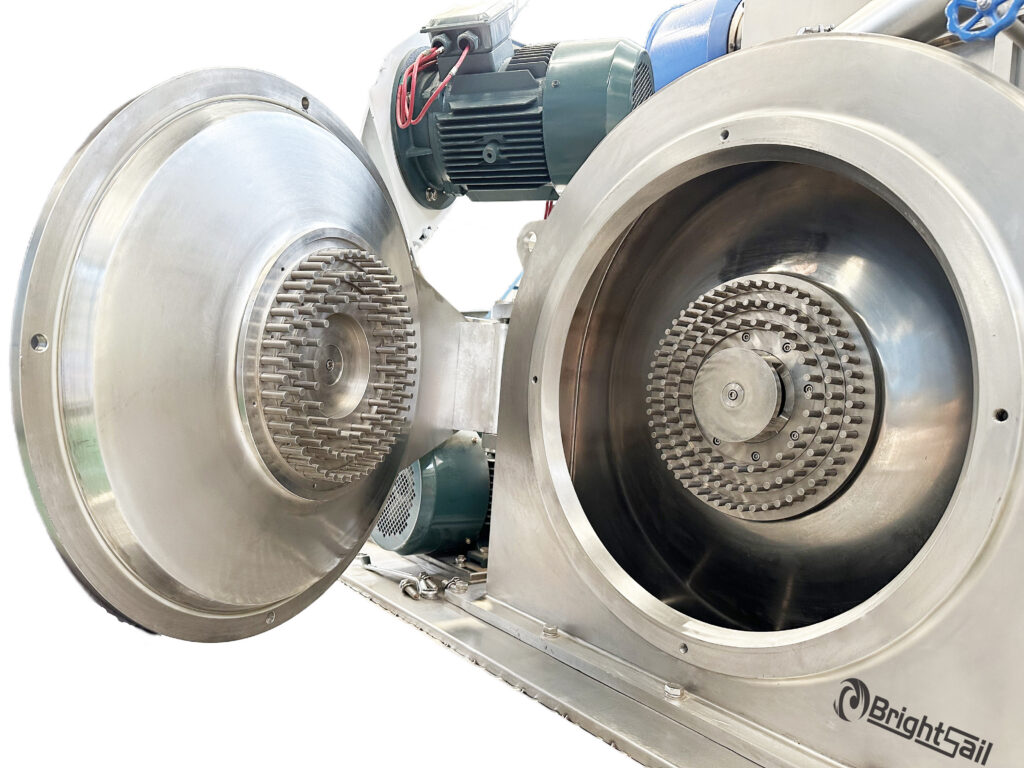

2.2 Wide Chamber Pin Mill
The wide chamber design offers sufficient internal space and smooth air circulation, which quickly takes away grinding heat and maintains a lower operating temperature. Optimized internal airflow avoids powder extrusion and accumulation, effectively solving common problems such as material wall sticking and caking. Featuring strong compatibility, the wide-chamber contraplex pin mill works perfectly for common grain powders and slightly heat-sensitive, sticky food and chemical materials.
3. Special Standalone Structure: Professional Cocoa Grinding Machine
Apart from standard models equipped with complete dust removal and discharging systems, the contraplex pin mill provides a special standalone version without auxiliary dust removal and discharging devices.
This vertical straight-through structured cocoa grinding machine is specially developed for cocoa processing. It efficiently grinds cocoa nibs into uniform cocoa liquor around 200 mesh. Compared with traditional colloid mills, this pin mill produces finer and more consistent finished particles with much higher production efficiency, becoming a cost-effective professional solution for cocoa deep processing factories.
4. Advanced Customization: Cryogenic Spice Grinding Machine
Most premium spices, herbal materials and food additives are extremely sensitive to heat, which may cause flavor volatilization, ingredient loss and material adhesion during ordinary grinding. To solve this industry pain point, the contraplex pin mill supports liquid nitrogen cooling customization, serving as a professional cryogenic spice grinding machine.
Connected with a liquid nitrogen supply system, the equipment lowers the internal grinding temperature throughout operation. The cryogenic grinding technology completely retains the original flavor, active ingredients and nutritional value of materials. It is widely applied in high-end spice processing, health food and fine additive production.
5. Conclusion
There is no one-size-fits-all contraplex pin mill. The optimal selection depends on your material characteristics, hygiene standards and capacity requirements:
- Dry chemical powder: Cyclone pulse narrow-chamber pin mill
- Food-grade grain and pasta materials: Platform dust removal wide-chamber contraplex pin mill
- Cocoa deep processing: Standalone cocoa grinding machine
- High-end heat-sensitive spices: Custom cryogenic spice grinding machine
Reasonable model selection eliminates common production defects including material overheating, wall sticking and difficult cleaning, while maximizing production capacity and reducing material loss, helping factories achieve efficient and hygienic equipment upgrading.
